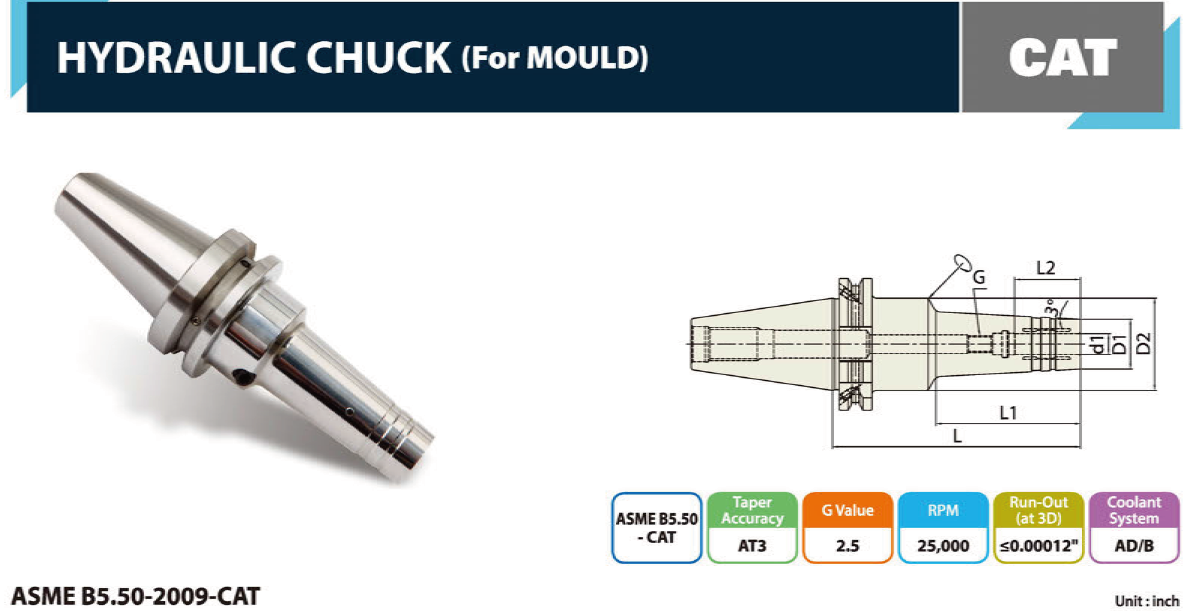

Đầu kẹp dao ASME B5.50-2009-CAT-HMC, FOR MOULD-HYDRAULIC CHUCK ASME B5.50-2009-CAT-HMC

0 Lượt mua | 1186 Lượt xem

0 đánh giá

Mã sản phẩm: ASME B5.50-2009-CAT-HMC

Giá bán: Liên hệ

Nước sản xuất: Korea

Đầu kẹp dao ASME B5.50-2009-CAT-HMC, FOR MOULD-HYDRAULIC CHUCK ASME B5.50-2009-CAT-HMC. Sản phẩm xuất xứ từ Hàn Quốc, thích hợp gia công chính xác cao

Tùy chọn:

Số lượng:

Thêm vào giỏ hàng Mua ngay

Chi tiết sản phẩm
Đánh giá

EDP No.	TAPER No.	MODEL No.	d1	D1	D2	L	L2	G
WK020HMC	40	CAT40AD/B-HMC1/4-4.72	0.250	0.787	1.949	4.724	2.756	M5x0.8mm
WK022HMC		CAT40AD/B-HMC1/4-5.91	0.250	0.787	1.949	5.906	3.937	M5x0.8mm
WK024HMC		CAT40AD/B-HMC5/16-4.72	0.313	0.866	1.949	4.724	2.756	M6x1.0mm
WK026HMC		CAT40AD/B-HMC5/16-5.91	0.313	0.866	1.949	5.906	3.937	M6x1.0mm
WK028HMC		CAT40AD/B-HMC3/8-4.72	0.375	0.945	1.949	4.724	2.756	M8x1.0mm
WK030HMC		CAT40AD/B-HMC3/8-5.91	0.375	0.945	1.949	5.906	3.937	M8x1.0mm
WK032HMC		CAT40AD/B-HMC1/2-4.72	0.500	1.024	1.949	4.724	2.756	M10x1.0mm
WK034HMC		CAT40AD/B-HMC1/2-5.91	0.500	1.024	1.949	5.906	3.937	M10x1.0mm
WK036HMC		CAT40AD/B-HMC5/8-4.72	0.625	1.260	1.949	4.724	2.756	M12x1.0mm
WK038HMC		CAT40AD/B-HMC5/8-5.91	0.625	1.260	1.949	5.906	3.937	M12x1.0mm
WK040HMC		CAT40AD/B-HMC3/4-4.72	0.750	1.339	1.949	4.724	2.756	M16x1.0mm
WK042HMC		CAT40AD/B-HMC3/4-5.91	0.750	1.339	1.949	5.906	3.937	M16x1.0mm
WL020HMC	50	CAT50AD/B-HMC1/4-5.91	0.250	0.787	1.752	5.906	3.937	M5x0.8mm
WL022HMC		CAT50AD/B-HMC5/16-5.91	0.313	0.866	1.752	5.906	3.937	M6x1.0mm
WL024HMC		CAT50AD/B-HMC3/8-5.91	0.375	0.945	1.752	5.906	3.937	M8x1.0mm
WL026HMC		CAT50AD/B-HMC1/2-5.91	0.500	1.024	1.752	5.906	3.937	M10x1.0mm
WL028HMC		CAT50AD/B-HMC5/8-5.91	0.625	1.260	1.752	5.906	3.937	M12x1.0mm
WL030HMC		CAT50AD/B-HMC3/4-5.91	0.750	1.339	1.752	5.906	3.937	M16x1.0mm

EDP No.	TAPER No.	MODEL No.	d1	D1	D2	L	L1	L2	G
WK100HMC	40	CAT40AD/B-HMC6-120	6	20	49.5	120	70	27	M5x0.8
WK102HMC		CAT40AD/B-HMC6-150	6	20	49.5	150	100	27	M5x0.8
WK104HMC		CAT40AD/B-HMC8-120	8	22	49.5	120	70	27	M6x1.0
WK106HMC		CAT40AD/B-HMC8-150	8	22	49.5	150	100	27	M6x1.0
WK108HMC		CAT40AD/B-HMC10-120	10	24	49.5	120	70	32	M8x1.0
WK110HMC		CAT40AD/B-HMC10-150	10	24	49.5	150	100	32	M8x1.0
WK112HMC		CAT40AD/B-HMC12-120	12	25	49.5	120	70	37	M10x1.0
WK114HMC		CAT40AD/B-HMC12-150	12	25	49.5	150	100	37	M10x1.0
WK116HMC		CAT40AD/B-HMC16-120	16	32	49.5	120	70	42	M12x1.0
WK118HMC		CAT40AD/B-HMC16-150	16	32	49.5	150	100	42	M12x1.0
WK120HMC		CAT40AD/B-HMC20-120	20	34	49.5	120	100	42	M16x1.0
WK122HMC		CAT40AD/B-HMC20-150	20	34	49.5	150	100	42	M16x1.0
WL100HMC	50	CAT50AD/B-HMC6-150	6	20	44.5	150	100	27	M5x0.8
WL102HMC		CAT50AD/B-HMC8-150	8	22	44.5	150	100	27	M6x1.0
WL104HMC		CAT50AD/B-HMC10-150	10	24	44.5	150	100	32	M8x1.0
WL106HMC		CAT50AD/B-HMC12-150	12	25	44.5	150	100	37	M10x1.0
WL108HMC		CAT50AD/B-HMC16-150	16	32	44.5	150	100	42	M12x1.0
WL110HMC		CAT50AD/B-HMC20-150	20	34	44.5	150	100	42	M16x1.0
